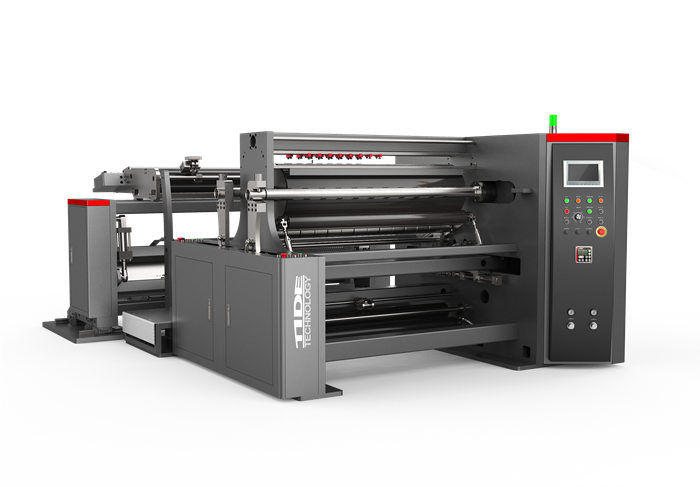

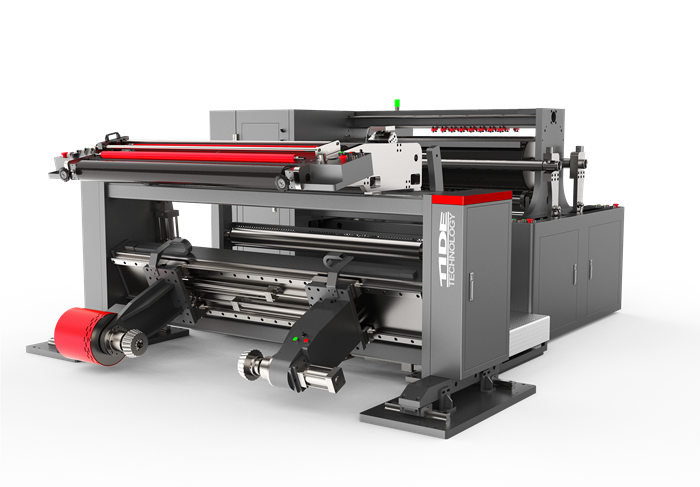

SP600 Digital Control Hi-speed Slitter
CHARACTERISTICS
· Major for slitting light paper aluminum and film(such as tipping paper and so on)
· Splicing table with nip bars to fix the material and with the razor to cut off the material
· Reel loading automatically
· Separated tension control system
· Unwinding width adjusting automatically
· Remote Diagnosis and services
· Splicing table with nip bars to fix the material and with the razor to cut off the material
· Reel loading automatically
· Separated tension control system
· Unwinding width adjusting automatically
· Remote Diagnosis and services
· Air shafts for rewinding
· Servo driving system
· Marking the rewinding core position by laser
· Cirlce knife slitting
· Center and surface rewinding mode
· Self diagnosis
· Maintenance information on touch screen
· Servo driving system
· Marking the rewinding core position by laser
· Cirlce knife slitting
· Center and surface rewinding mode
· Self diagnosis
· Maintenance information on touch screen
TECHNICAL DATA
| Standard | Option | |
|---|---|---|
| · Width of rewinding: | 50mm | 3mm |
| · width of working face: | 1300mm | 1800mm |
| · Diameter of unwinding: | φ800mm(max) | φ1800mm(max) |
| · Diameter of rewinding: | φ800mm(max) | -- |
| · Thickness of material: | 10g/㎡-100g/㎡, 20μm-100μm | more than 400g/㎡ or 300μm |
| · Working speed: | 400m/min(max) | 600m/min(max) |
OPTION
* Expander roller
* Air friction shafts rewinding mode
* Stocking the finished rolls automatically
* 6 inch rewinding mode
* unloading the finished rolls automatically
* Link to ERP
* Air friction shafts rewinding mode
* Stocking the finished rolls automatically
* 6 inch rewinding mode
* unloading the finished rolls automatically
* Link to ERP
